Configuration
Product Details
Shipping at China loading port

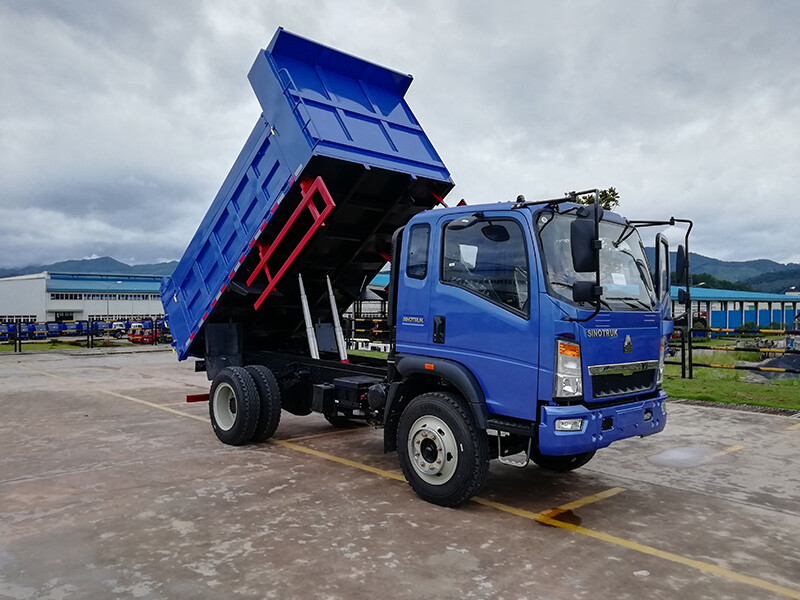

ItemSINOTRUK H3 4X2 8CBM Dump Truck
ColorOptional (Red, White, Yellow, Blue)
Driving typeLHD/RHD
EngineEngine model: 160hp, Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

2080 cabin, with one and half row sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel,

 air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

8 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

 main transmission with double counter shaft, auxiliary transmission with planetary reduction.

SteeringPower steering with hydraulic system.
Front Axle3600kg.
Rear Axles10000kg.
Wheelbase (mm)3600
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540W

 Starter: 24 V, 7.5 Kw

Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire10.00R20, Steel wire tire, plus one spare tire (7 units)
Fuel tank150L volume
Dump box volume8m3, 4200x2200x900, bottom 4mm, side 3mm
External dimension6500x 2420x2820 mm

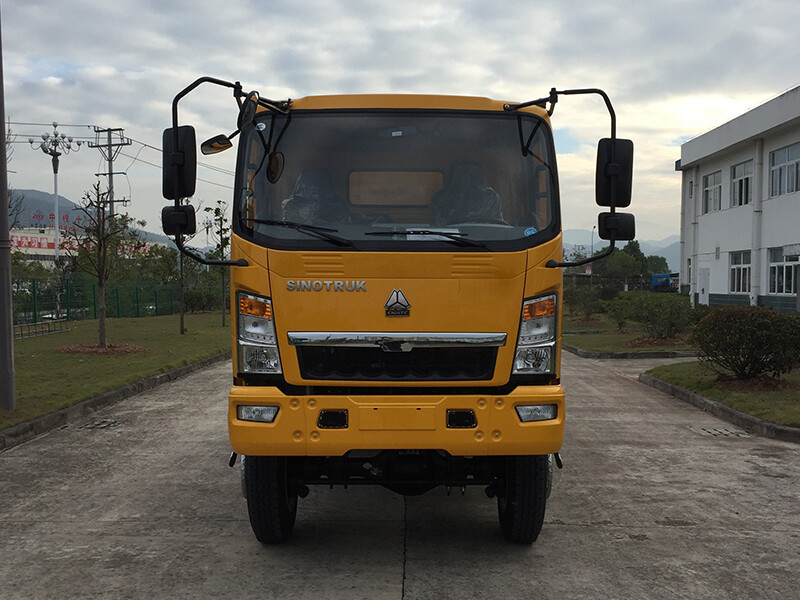

1728721998703644819949182976.jpg@!w4001728721996703644812261023744.jpg@!w400

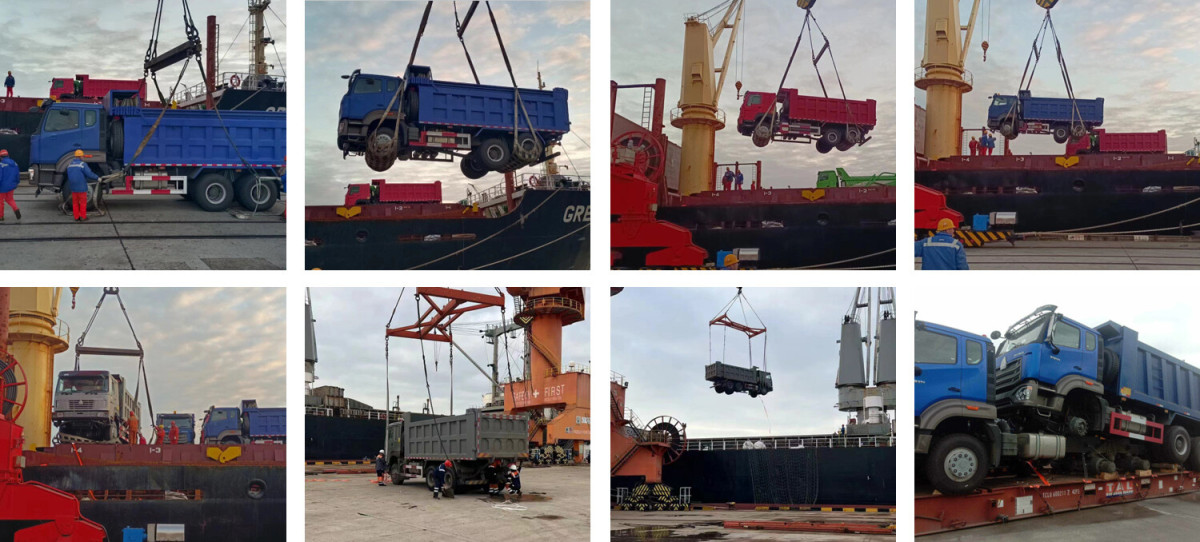

Shipping at China loading port.jpg
