Configuration
Product Details
Shipping at China loading port

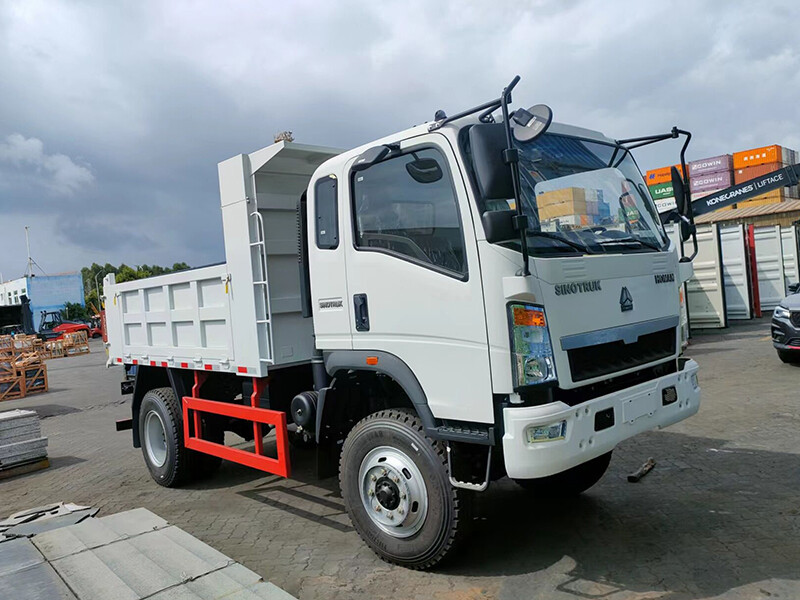

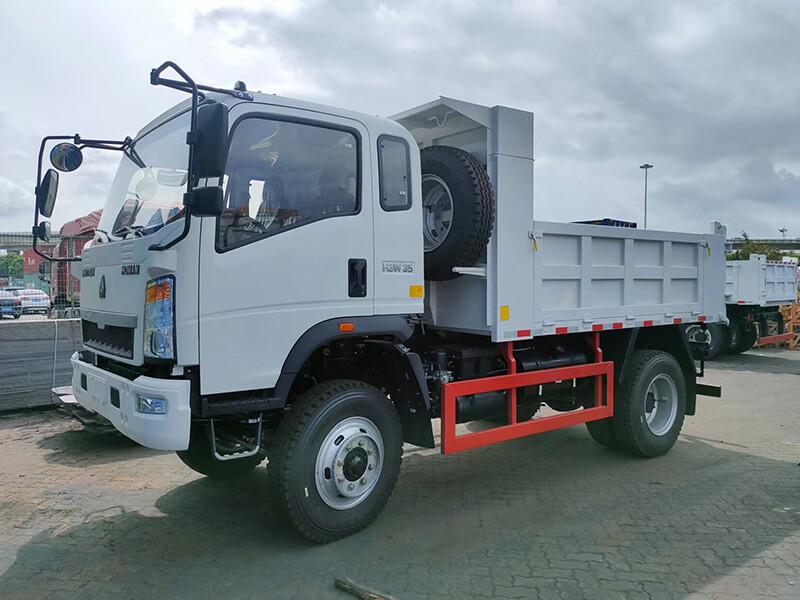

ItemSINOTRUK 4X4 6CBM Dump Truck
ColorOptional (Red, White, Yellow, Blue)
Driving typeLHD/RHD
EngineEngine model: 116hp, Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

With one and half row sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel,

  air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

8 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

main transmission with double counter shaft,

 auxiliary transmission with planetary reduction. With transfer case.

SteeringPower steering with hydraulic system.
Front Axle2080.
Rear Axles1094D.
Wheelbase (mm)3500
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540W

Starter: 24 V, 7.5 K

 Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire9.00R20, Steel wire tire, plus one spare tire (7 units)
Fuel tank120L volume
Dump box volume6m3, 3850x2100x800, bottom 6mm, side 4mm
External dimension6200x 2320x2820 mm
1728722238703645829702701056.jpg@!w4001728722238703645826351452160.jpg@!w400

Shipping at China loading port.jpg
