Configuration
Product Details
Shipping at China loading port

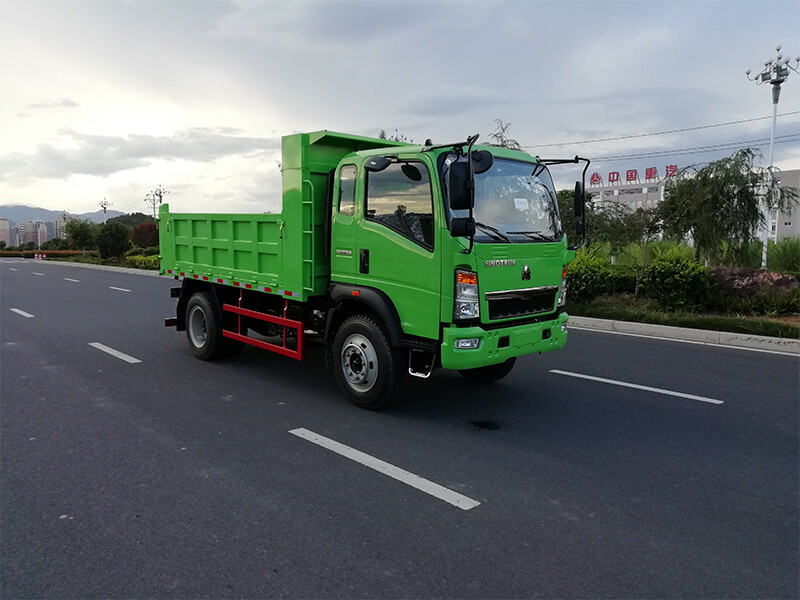

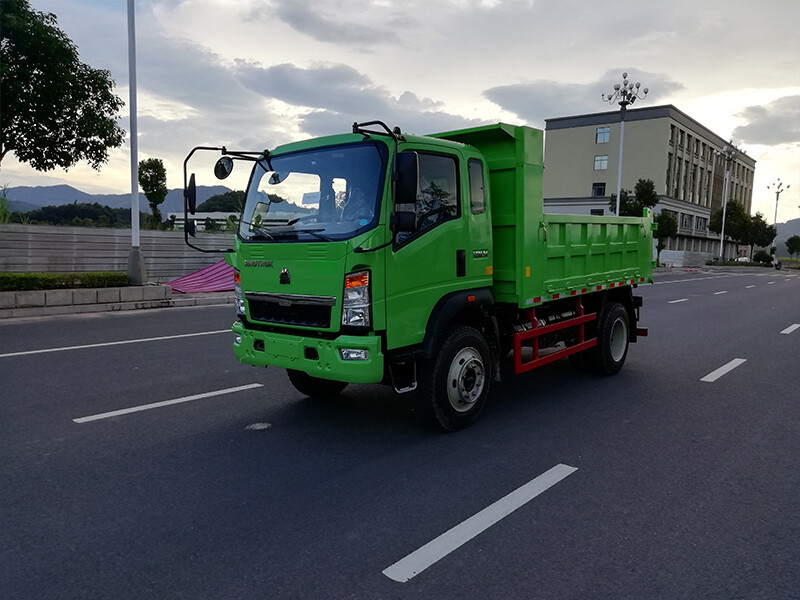

ItemSINOTRUK H3 4X2 4CBM Dump Truck
ColorOptional (Red, White, Yellow, Blue)
Driving typeLHD/RHD
EngineEngine model: 110hp, Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

1880 cabin, with one and half row sleeper (berth), Air-conditioner, MP3, safety belts,

 adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

6 F and 1 R, manual.Transmission with main and auxiliary transmission structure,

  main transmission with double counter shaft, auxiliary transmission with planetary reduction.

SteeringPower steering with hydraulic system.
Front Axle2800kg.
Rear Axles6500kg.
Wheelbase (mm)3200
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540W

 Starter: 24 V, 7.5 Kw

Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire8.25R16, Steel wire tire, plus one spare tire (7 units)
Fuel tank120L volume
Dump box volume4m3, 3600x2000x600, bottom 4mm, side 3mm
External dimension6000x 2300x2700 mm
1728721414703642371381612544.jpg@!w4001728721415703642374720278528.jpg@!w400

Shipping at China loading port.jpg
