Configuration
Product Details
Shipping at China loading port

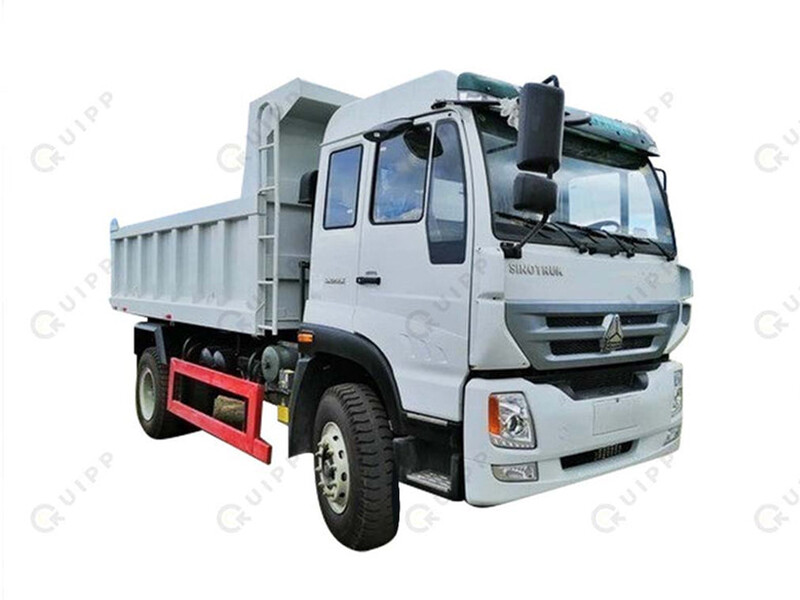

ItemSINOTRUK H5 4X2 10CBM 12CBM Dump Truck
ColorOptional (Red, White, Yellow, Blue)
Driving typeLHD/RHD
EngineEngine model: 220hp, Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

H5 cabin, with one and half row sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel,

 air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

8 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

 main transmission with double counter shaft, auxiliary transmission with planetary reduction.

SteeringPower steering with hydraulic system.
Front Axle5500kg.
Rear Axles13000kg.
Wheelbase (mm)4700
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540W

 Starter: 24 V, 7.5 Kw

Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire10.00R20, Steel wire tire, plus one spare tire (7 units)
Fuel tank300L volume
Dump box volume10m3, 4500x2300x1000, bottom 6mm, side 4mm12m3, 4500x2300x1200, bottom 6mm, side 4mm
External dimension7500x 2450x3000 mm

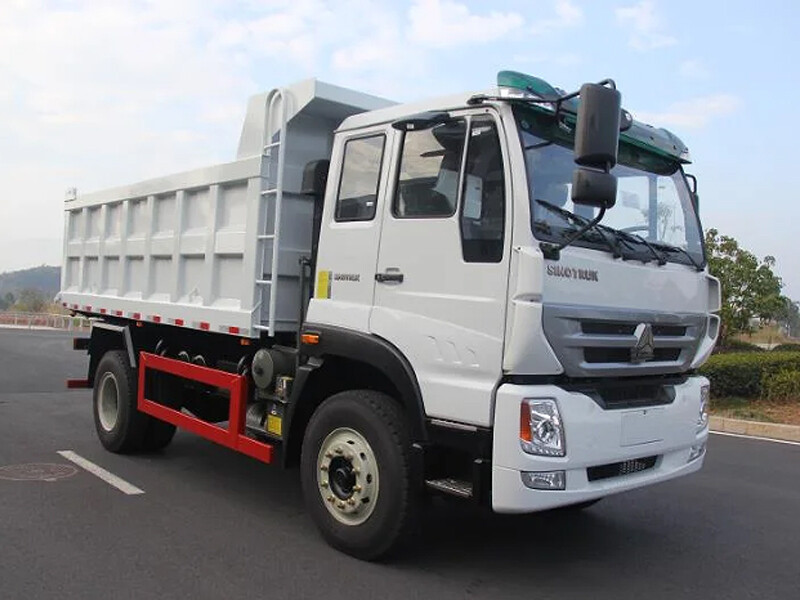

SINOTRUK H5 4x2 DumpTruck 10cbm 12cbm.jpg

Shipping at China loading port.jpg
