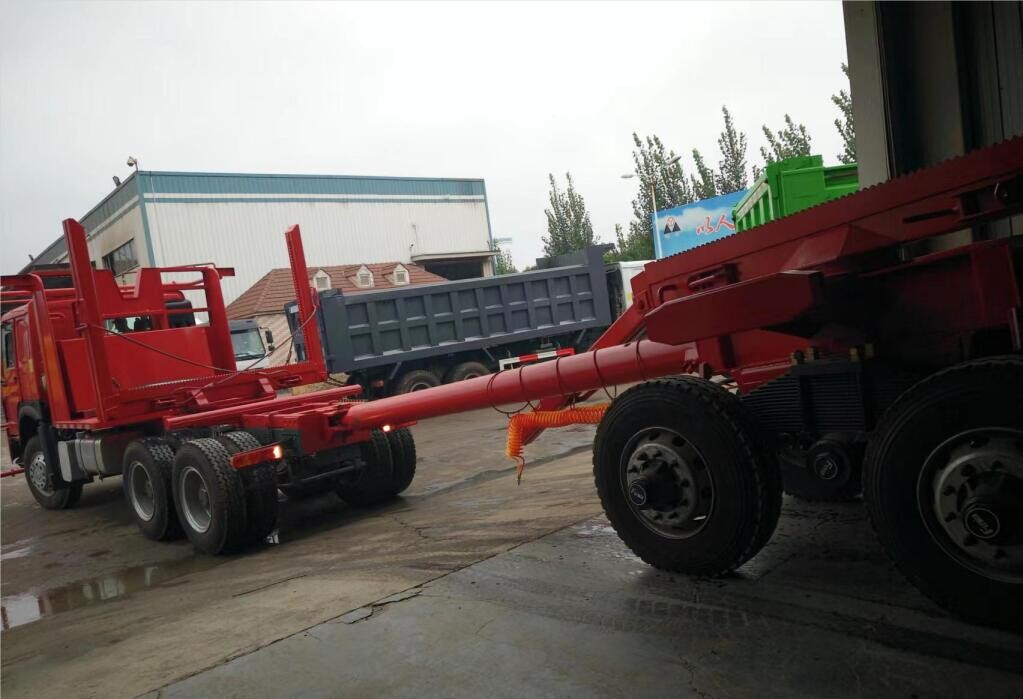

SINOTRUK HOWO 6X4 Logging Transportation Truck

ItemSINOTRUK HOWO 6X4 Logging Transportation Truck
ColorOption
Driving typeLHD/RHD
Engine

Engine model: WP10.380E22, 380HP, Euro 26-cylinder in-line with water cooling,

 turbo-charging and intercooling.

Cabin

HW76 extended cabin with one sleeper (berth), Air-conditioner, MP3,

 safety belts, curtain. Adjustable steering wheel, air horn,

with 4-point support fully floating suspension and shock absorbers etc.

Transmission

HW19710, 10 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

 main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Front Axle7000kg/9000kg
Rear Axles16000kgX2, drum brake.
SteeringPower steering with hydraulic system.
Brake system

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical system

Operating voltage: 24 V, negative grounde

 Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

 Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires295/80R22.5; 315/80R22.5; 12.00R20
Fifth wheel (towing pin)90#
Fuel tank400L volume
Towing Capacity100T
LOGGING TIMBER TRAILER
AxleFUWA brand, 16000kgX2
Tire12.00R20, steel radial tire, 8 pcs.
Hauling rod size:8750X270X12mm
Cabin skeleton width: 2800mm
Front board and working flatform thickness8mm
Front board height:1500mm
Total dimension of Logging timber transportation truck(LxWxH)9900x3300x4000mm

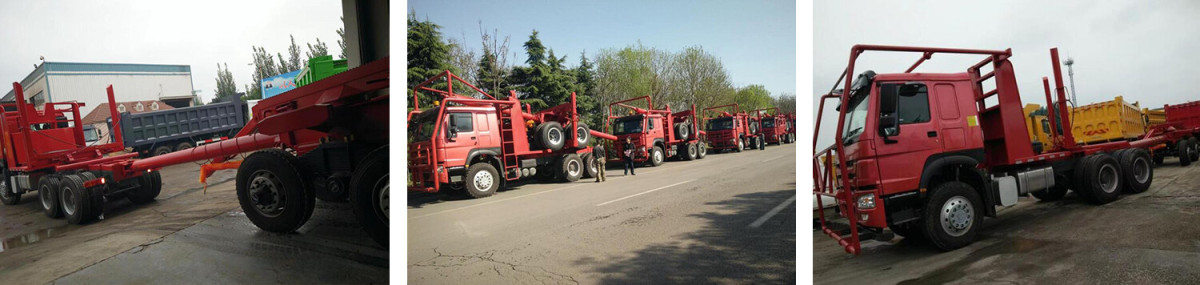

SINOTRUK HOWO 6X4 LOGGING TRANSPORTATION TRUCK.jpg

Shipping at China loading port.jpg
