Shipping at China loading port

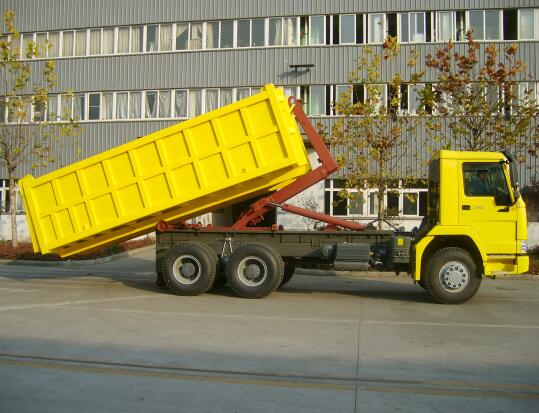

SINOTRUK HOWO 6X4 20 m3 HOOK ARM GARBAGE TRUCK

ItemSINOTRUK HOWO 6x4 20m3 Hook Arm Garbage Truck
ColorOptional (Red, White, Yellow, Blue)
Driving typeLHD/RHD
EngineEngine model: WP10.380E22, 380HP, Euro 2  6-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

HW76 cabin, with one sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel,

  air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

HW19710, 10 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

 main transmission with double counter shaft, auxiliary transmission with planetary reduction.

SteeringPower steering with hydraulic system.
Front Axle9000kgX1, drum brake.
Rear Axles16000kgX2.
Front/Rear overhang (mm)1500/1670
Wheel track (front/rear) mm2022/1830
Minimum ground clearance (mm)314
Approach/departure angle (°)16/25
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540W

 Starter: 24 V, 7.5 Kw

 Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire12.00R20, radial steel tire, plus one spare tire (11 units)
Fuel tank300L volume
Tipper box (mm)20m3
External dimension10200x 2600x3450 mm

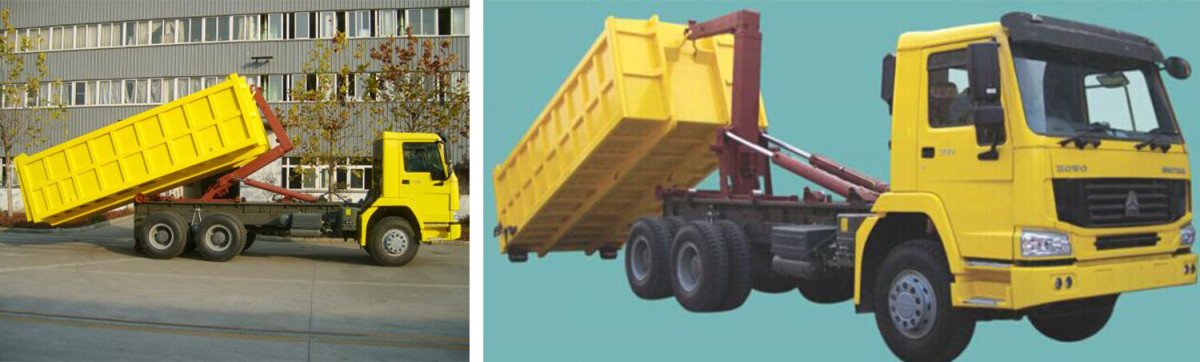

6X4 HOOK ARM GARBAGE TRUCK.jpg

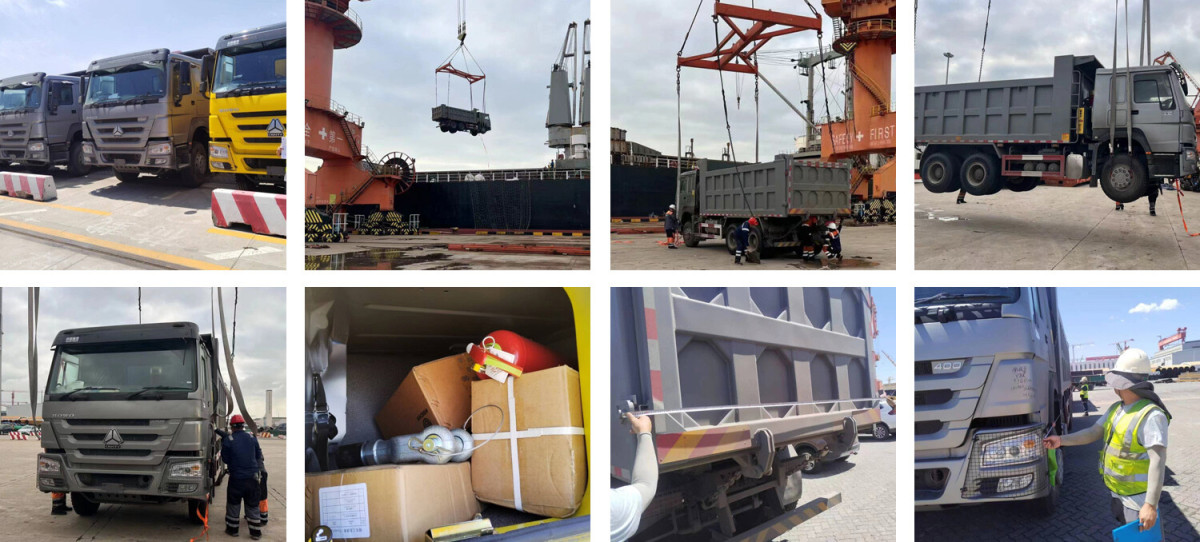

Shipping at China loading port.jpg
