SINOTRUK HOWO 6X4 33M CONCRETE PUMP TRUCK

ItemSINOTRUK HOWO 6x4 33M CONCRETE PUMP TRUCK
ColorOptional (Red, White, Yellow, Blue)
Driving typeLHD/RHD
EngineEngine model: WP10.380E22, 380HP, Euro 26-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

HW76 cabin, with one sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel,

 air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

HW19710, 10 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

 main transmission with double counter shaft, auxiliary transmission with planetary reduction.

SteeringPower steering with hydraulic system.
Front Axle7000kgX1, drum brake.
Rear Axles16000kgX2.
Front/Rear overhang (mm)1500/2709
Wheel track (front/rear) mm2022/1830
Minimum ground clearance (mm)314
Approach/departure angle (°)16/14
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

  compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540

 Starter: 24 V, 7.5 Kw

Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire315/80R22.5 or 12R22.5 or 295/80r22.5 or 12.00R20, plus one spare tire (11 units)
Fuel tank400L volume
Arm length of Concrete pump33m/37m/42m
External dimension12000x 2600x3900 mm

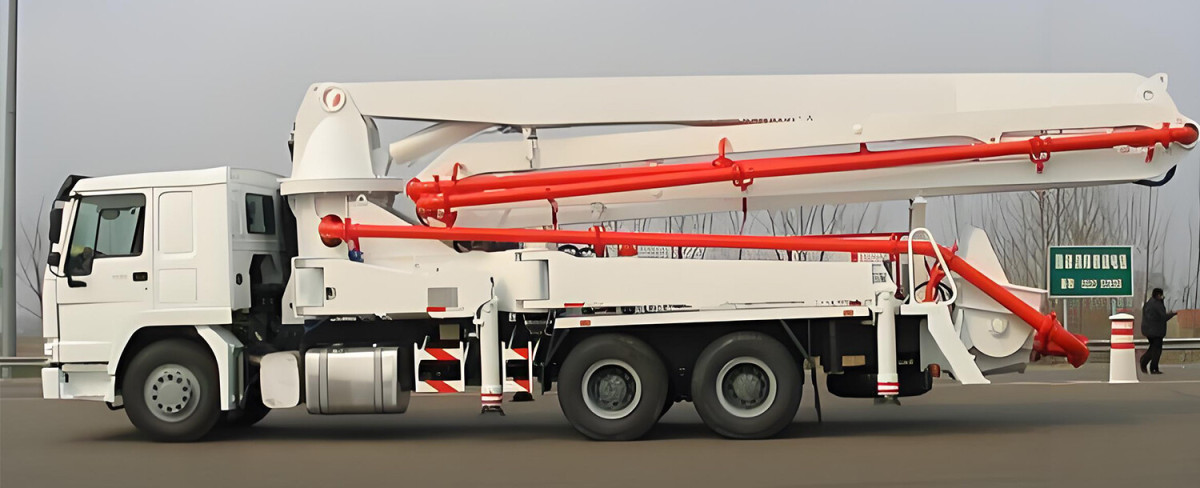

SINOTRUK HOWO 6X4 CONCRETE PUMP TRUCK1.jpg

Shipping at China loading port.jpg
