Configuration
Product Details
Shipping at China loading port

SINOTRUK HOWO 6X4 10TON FIRE FIGHTING TRUCK

ItemSINOTRUK HOWO 6x4 Fire Fighting Truck
ColorRed
Driving typeLHD/RHD
EngineEngine model: WP10.380E22, 380HP, Euro 26-cylinder in-line with water cooling, turbo-charging and intercooling.
Cabin

HW76 cabin, with one sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel,

 air horn, with 4-point support fully floating suspension and shock absorbers, etc.

Transmission

HW19710, 10 F and 2 R, manual.Transmission with main and auxiliary transmission structure,

 main transmission with double counter shaft, auxiliary transmission with planetary reduction.

SteeringPower steering with hydraulic system.
Front Axle9000kgX1, drum brake.
Rear Axles16000kgX2.
Wheelbase (mm)3625+1350
Front/Rear overhang (mm)1500/1670
Wheel track (front/rear) mm2022/1830
Minimum ground clearance (mm)314
Approach/departure angle (°)16/25
Braking System

Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy,

 compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake

Electrical System

Voltage: 24 VGenerator: 1540

 Starter: 24 V, 7.5 Kw

Batteries: 12V/165Ah, 2 pieces

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire12.00R20, 315/80R22.5 or 295/80R22.5, plus one spare tire (11 units)
Fuel tank400L volume
Fire fighting box5ton water + 5ton foam; or 7ton water + 3ton foam
External dimension8450x 2600x3450 mm

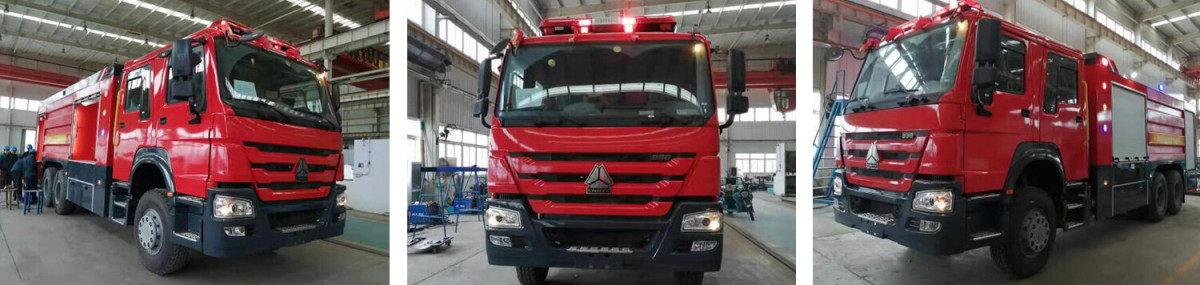

SINOTRUK HOWO 6X4 FIRE FIGHTING TRUCK.jpg

Shipping at China loading port.jpg
