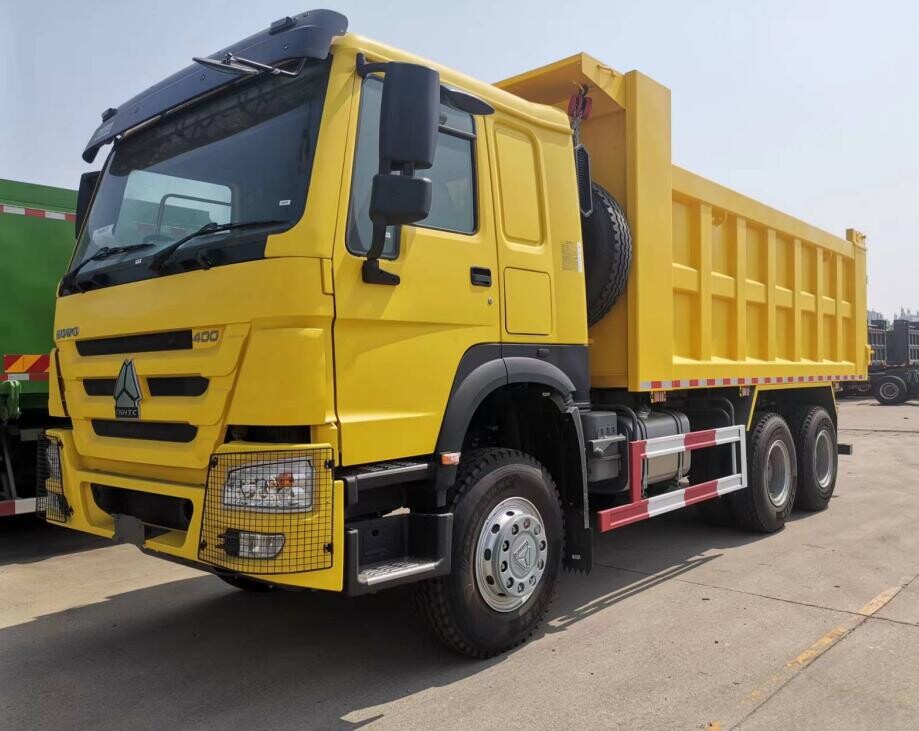

HOWO DUMP TRUCK

›

‹

  • HOWO DUMP TRUCK
  • HOWO DUMP TRUCK
  • HOWO DUMP TRUCK

›

HOWO DUMP TRUCK
WhatsApp: +86 15806668898
Email: howo@howo.hk
Configuration
Product Details

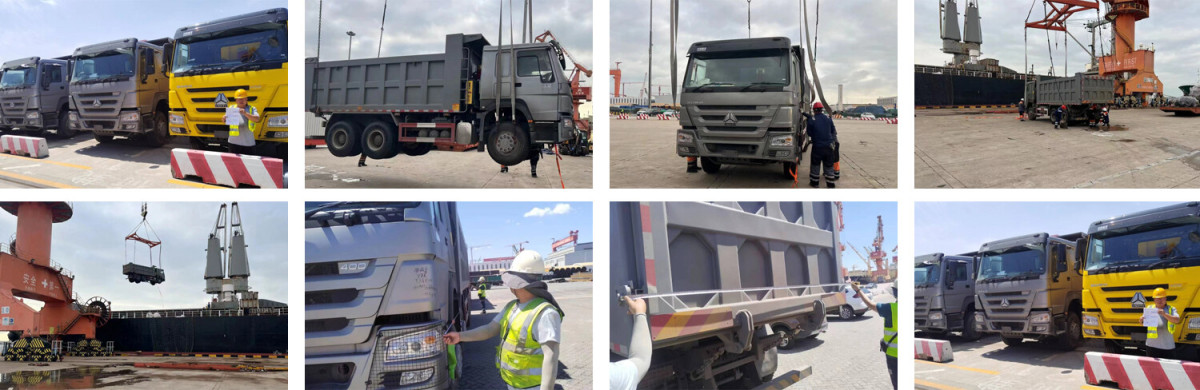

Shipping at China loading port
Representative Vehicle ModelZZ3257V3847B1
Cabin

SINOTRUK HW76 extended cabin with one berth (sleeper), with Air-conditioner (A/C),

 up/down and front/back adjustable steering wheel, satety belt, exterior sun visor etc.

EngineModelWEICHAI, WP12.400E201, 400HP, Euro II
Type6 cylinder in line, 4 stroke direct injection diesel engine, water cooling, Intercooler Turbocharged.
Number of Cylinder6
Bore X Stroke (mm)126x155
Rated Power (kw/rpm)294/2100
Maximum Torque (Nm/rpm)1780/1200-1500
Displacement (L)11.596
ClutchΦ430 pull-type diaphragm spring clutch, Hydraulic control air assisted.
Transmission

SINOTRUK HW series, HW19710 + HW50PTO, 10 forwarder & 2 reserve,

 manual.Main and auxiliary transmission structure, main transmission

with double counter shaft , auxiliary transmission with planetary reduction.

Steering SystemPower steering with hydraulic system.
Front axleheavy duty axle, 9500kgX1, drum type.
Rear axleheavy duty axle, 16000kgX2.
Braking System

Service brake: dual-circuit air pressure brake;Parking brake (emergency brake):

 spring storage energy without air.Auxiliary brake: Engine exhaust brake.

Electrical System

Voltage: 24VGenerator: 1540WStarter: 7.5 kWBattery: 12V/165Ah, 2 pieces.

 Cigar-lighter, horn, headlamps, fog lights, brake lights, indicator and reverse light.

Tire12.00R20, steel radial tires, plus one spare tire (totally 11 units)Optional: 315/80R22.5, 12R22.5
Tank Volume (L)300L
Kerb Weight (kg)12600
Gross Weight (kg)50000
Maximum Speed (km/h)75

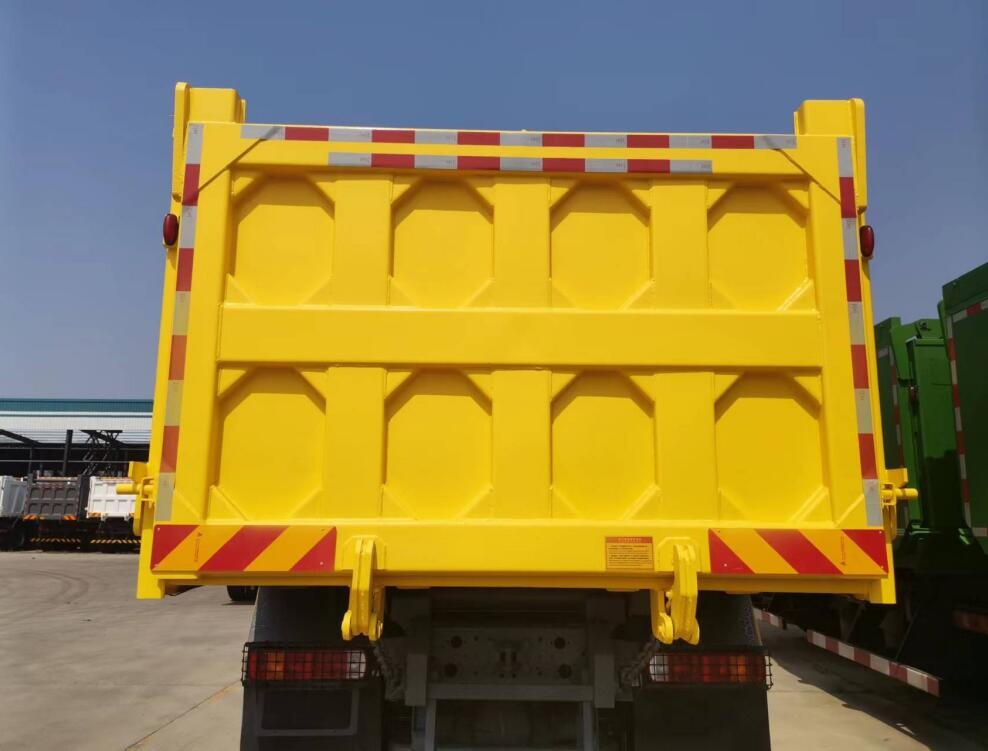

Dump box dimension (mm)5600X2300X1500 (20m3)
Overall dimension (mm)8350X2600X3450
Manufacture year2024

HOWO DUMP TRUCK

HOWO DUMP TRUCK
